varionaut 90 24 V

The Varionaut 90 /DMX/02 is the smallest powerful DMX/RDM compatible pump with 24 V DC technology. This highly dynamic, individually adjustable pump generates water features with exact repeatable fountain heights.

The Varionaut 90 24 V DC complies with the international installation regulations for fountain installations and may be installed directly in the pool (<30V DC). The maximum fountain height that can be achieved with the Comet 5 - 8 is 2m in just 0.6 second. The pump has 1 m power cable with 24 V DC connection box and 1 m BUS cable with DMX connection box including capillary lock. The second DMX/RDM connector allows other devices (such as other pumps or LED fixtures) to be interconnected. The patented IP 68 waterproof connector makes installation safer, easier and faster.

• High dynamic fountain pump

• Frost protected up to -20°C

• Can be individually programmed via RDM-DMX

• 24 V / DC fountain pump for indoor and outdoor application

• Can be placed directly below the nozzles in the water as DC up to 30 V/DC is approved by national regulations

• Wet and dry installation

• Power consumption of max. 60 W

• Reverse polarity protection

• 1 m power cable with connection box (only 50665) and 1 m DMX cable with DMX box

varionaut 150 24 V

The Varionaut 150 24 V /DMX/02 is the midrange DMX/RDM compatible pump with 24 V DC technology. This highly dynamic, individually adjustable pump generates water features with exact repeatable fountain heights.

The Varionaut 150 24 V DC complies with the international installation regulations for fountain installations and may be installed directly in the pool (<30V DC). The maximum fountain height that can be achieved in 1 second with the Comet 10 - 12 is 3.1 m. The pump (50665) has 1 m power cable with 24 V DC connection box and 1 m BUS cable with DMX connection box including capillary lock. The second DMX/RDM connector allows other devices (such as other pumps or LED fixtures) to be interconnected. The patented IP 68 waterproof connector makes installation safer, easier and faster.

• 24 V / DC fountain pump for indoor and outdoor application

• Suitable for wet installation

• Power consumption of max. 120 W

• Reverse polarity protection

• 1 m power cable with connection box (only 50665) and 1 m DMX cable with DMX box

• Frost protected up to -20° C

• Protection class IP 68

varionaut 240 24 V

The Varionaut 240 24 V /DMX/02 is the most powerful DMX/RDM compatible pump with 24 V DC technology. This highly dynamic, individually adjustable pump generates water features with exact repeatable fountain heights. The maximum fountain height of 4.8 m is achieved in just 1 second with the Comet 15 - 15.

The Varionaut 240 complies with the international installation regulations for fountain installations and may be installed directly in the pool (<30V DC). Two DMX/RDM connections (1 x input, 1 x output) including capillary lock are fixed to the pump. The second DMX/RDM connector allows other devices (such as other pumps or LED fixtures) to be interconnected. The patented IP 68 waterproof connector makes installation safer, easier and faster.

• Power consumption max. 240 W

• 24 V / DC fountain pump for indoor and outdoor application

• High dynamic fountain pump

• Frost protected up to -20° C

• Largest 24 V/DC pump with DMX / RDM technology

• Individual controllable closed loop speed control via DMX with continuous flow rate

• 24 V DC pump for indoor and outdoor

• Suitable for wet or dry installation

• 1 m power cable with 24 V/DC box

• Reverse polarity protection

• 2 DMX RDM ports (1 x input/ 1 x output) directly at the pump

• Protection class IP 68

• DMX / RDM capable

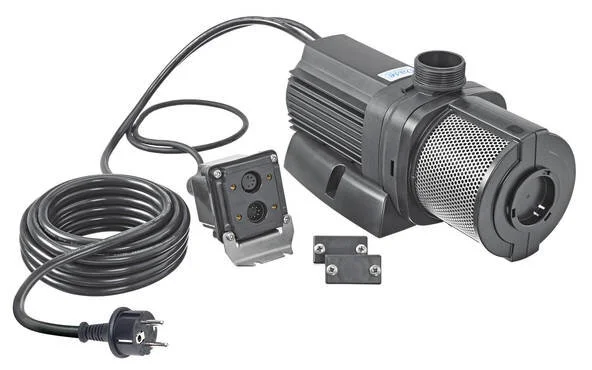

varionaut 150 230 V

The Varionaut 150 /DMX/02 is the smallest 220-240 V AC DMX/RDM compatible pump. This individually adjustable pump generates highly dynamic water features with exact repeatable fountain heights. The maximum fountain height of approx. 3.5 m is achieved in just 1 second with the Comet 10 - 12.

The pump has 10 m power cable and 1 m BUS cable with DMX connection box including capillary lock. The second DMX/RDM connector allows other devices (such as other pumps or LED fixtures) to be interconnected. The patented IP 68 waterproof connector makes installation safer, easier and faster.

• 230 V/AC fountain pump with alternating current for the application indoor and outdoor

• Suitable for wet or dry installation

• Power consumption of max. 130 W

• 10 m power cable with plug and 1 m DMX cable with DMX box (50343)

• Protection class IP 68

• DMX-RDM capable

varionaut 270 230 V

The high dynamic fountain pump Varionaut 270 /DMX/02 closes the gap between the existing Varionaut 150 and Varionaut 400. This energyefficient pump can be regulated and controlled via the integrated DMX/RDM port. Thus, individual and dynamic water effects can be realized with exactly repeatable fountain heights.

The Varionaut 270 /DMX/02 is equipped with a 10 m power cable with plug and two inbuilt DMX/ RDM ports including capillary barrier. The pump is individually addressable and controllable. Other devices (such as LED lights) which are connected.

• High dynamic fountain pump

• Individual controllable closed loop speed control via DMX with continuous flow rate

• 230 V AC pump for indoor and outdoor

• Suitable for wet or dry installation

• Power consumption max. 380 W

• Without initial current

• 20 ft power cable without plug (40844)

• 2 DMX RDM ports (1 x input/ 1 x output) directly at the pump

• Frost protected up to -20° C

• Protection class IP 68

• DMX-RDM capable

varionaut 400 230 V

The Varionaut 400 /DMX/02 is the most powerful DMX/RDM compatible pump. This individually adjustable pump generates highly dynamic water features with exact repeatable fountain heights. The maximum fountain height of approx. 10 m is achieved in just 1.1 seconds with the Comet 15 - 15

The two DMX/RDM connections (1 x input, 1 x output) including capillary lock are located directly on the pump. The second DMX/RDM connector allows other devices (such as other pumps or LED fixtures) to be interconnected. The patented IP 68 waterproof connector makes installation safer, easier and faster. In addition, this individually addressable or controllable pump is supplied with a power cable for power supply.

• Power consumption max. 730 W

• High dynamic fountain pump

• Frost protected up to -20° C

• Largest DMX/RDM Varionaut pump

• Individual controllable closed loop speed control via DMX with continuous flow rate

• 230 V AC pump for indoor and outdoor

• Suitable for wet or dry installation

• 20 ft power cable without plug (33256)

• 2 DMX RDM ports (1 x input/ 1 x output) directly at the pump

• Protection class IP 68

• DMX / RDM capable

Aquarius Universal Premium 5000-12000

• Extremely quiet operation

• Easy adjustment of the flow rate

• Integrated thermal protection - from 600 onward

• Power consumption 85 watt - 270 watt

• Suitable for wet and dry installation

• Energy-efficient thanks to low energy consumption

• Frost protected up to -20°C

• High-quality workmanship with stainless steel

• Priming even at low water levels

• Removable pedestal for installation where space is at a premium

profimax 7000

ProfiMax is ideal for larger installations that demand higher flow rates or applications where the pump might be exposed to debris in the water. ProfiMax excels under these conditions. In addition, ProfiMax can be converted for use in in-line installations. As with all OASE pumps its feature is state-of-the-art motor technology with built-in overheating protection.

• Pumps coarse debris up to 3/8” in size

• Power consumption 660 watt

• Wet and dry installation

PROFINAUT 6000

An excellent pump for producing impressive water displays in demanding applications. Head heights of up to 40 ft. make it a true powerhouse.

• Wet and dry installation

• Power consumption 720 watt

Universal pumps – USP

These pumps are true universal talents: Set up underwater they perform their work as submersible motor-driven pumps. They work just as reliably if they are set up in a separate pump chamber.

The robust wet-running canned motors have static seals. Inrushing water poses no problem for these pumps because they can be submersed. In addition thanks to the high-quality materials, such as special ceramics, stainless steel, and tombac, they are durable and offer an extremely long service life.

• Suitable for wet and dry installation

• Robust wet-running canned motor

• Wear-free static seals

• Power consumption 0.52 kW - 1.55 kW

• Bearings and motor shaft are made of special ceramics

• Shaft, can and pump impeller are made of stainless steel

• Housing made of corrosion resistant tombac alloy

Block centrifugal pump – BT

BT block centrifugal pumps are strong, uncomplicated pumps that are used wher ever space is limited.

Thanks to their compact design they have very small space requirements. All dimensions and connections are DIN standard; this ensures universal implementation.
BT block centrifugal pumps are normal suction centrifugal pumps in spiral housings for dry installation with a motor in accordance with IEC standards. They comprise few parts that are important for their function, which reduces maintenance work to a minimum.

The few maintenance tasks that are necessary are executed quickly and easily. Thanks to the low rpm the pumps are very quiet in operation and are more durable. The enclosed impeller is highly efficient. The robust BT block centrifugal pumps are delivered as standard in grey cast iron. Upon request these pumps can also be delivered in special materials, such an impeller as bronze.

• Dimensions and connections in accordance with DIN standards

• Maintenance-free slide ring seal

• Enclosed impeller with high efficiency

• Power consumption 2.2 kW - 15 kW

• Dry installation only

• IP 55 rated

• Motor in accordance with new IE3-Technology

Submersible motor-driven pumps – SPA

These multistage structured submersible motor-driven pumps are the powerful heart for high delivery heads.

These pumps can supply single fountains as well as group fountains with sufficient watervolumes and pressure for larger spray heights. Thus they are preferred in installations in which the delivery head of single-stage pumps are no longer required.

• Extremely shallow and slender design

• Multistage submersible motor pump

• Suitable for higher delivery heights

• High-volume filter basket

• Good stability

• Power consumption 1.1 kW - 30 kW

• Robust wet-running canned motor

• All parts made of stainless steel
